Description
Quick Overview

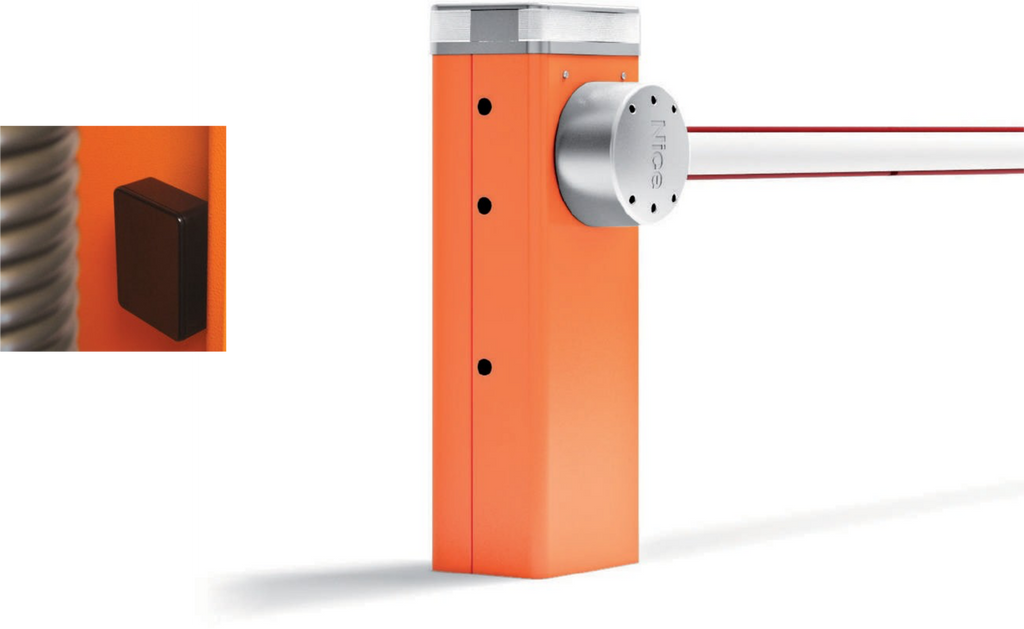

Strength and reliability: robust structure in steel, new high strength balancing springs guaranteed up to 1000000 opening and closing operations and elliptical section bar with high wind-gust resistance
More comfortable and safety in programming an maintenance phases: the separate enclosures for electronics and mechanics protect internal parts from potential risks
Rapid and easy access: to the control unit located in the upper section of the barrier body. Simple fixture of the completely concealed photocells onto the specially designed seats on the barrier body. Simple fixture of the completely concealed photocells onto the specially designed seats on the barrier body.
More safety and reliability: obstacle detection and monitoring of motor absorption during automation movement, automatic fault diagnostics during operation with consequent signalling of fault type through specific flash sequences. Provision for connection of latest generation optical and resistive sensitive edges.
Energy saving: the system sets to standby by when not in use to save consumption
Technical Specifications:
| Model | S-Bar |
| Electrical Data | |
| Power supply (V AC 5Hz) | 230 |
| Power supply (Vdc) | 24 |
| Absorption (A) | 1 |
| Power (W) | 300 |
| Performance Data | |
| Speed (m/s) | <4 |
| Torque (N) | 100 |
| Work cycle (cycles/day) | 100 |
| Dimensional and general data | |
| Protection Level (IP) | 44 |
| Working. Temp (°C Min/Max) | -20 / +50 |
| Dimensions (mm) | 330X180X1180 |
| Weight (kg) | 46 |
Contact us before placing an order to get up to date pricing and frieght charges
