Description
Communication: One-Way And Two-Way Radio Communication
Compatibility: “O-Code”, “FloR”, “TTS”, “Smilo” And “Flo” One-Way Radio Encoding Systems, And With The “BD” Two-Way Encoding System.
Identification: Known as the “Certificate”. This allows for accessing several operations,
Automation: Automatically recognizes the characteristics of the control unit on which it is installed and self-sets in the
following way: If the control unit manages the “BusT4”, the receiver makes available up o 15 different commands. If the control unit DOES NOT manage the “BusT4”, the receiver makes available up to 4 different commands.
Technical Specifications

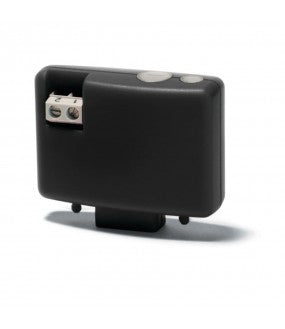

| Product Name | Two-way receiver OXIBD |
|
Reception frequency
|
433.92 MHz
|
|
Transmission frequency
|
433.82 MHz
|
|
Sensitivity
|
- 108 dBm
|
|
Encoding
|
O-Code 72 bit rolling code
|
|
Absorption
|
50 mA (maximum)
|
|
Operation temperature
|
-20 - 55°C
|
|
Weight (kg)
|
0.022
|
|
Dimensions (mm)
|
49.5x41.9x18
|
