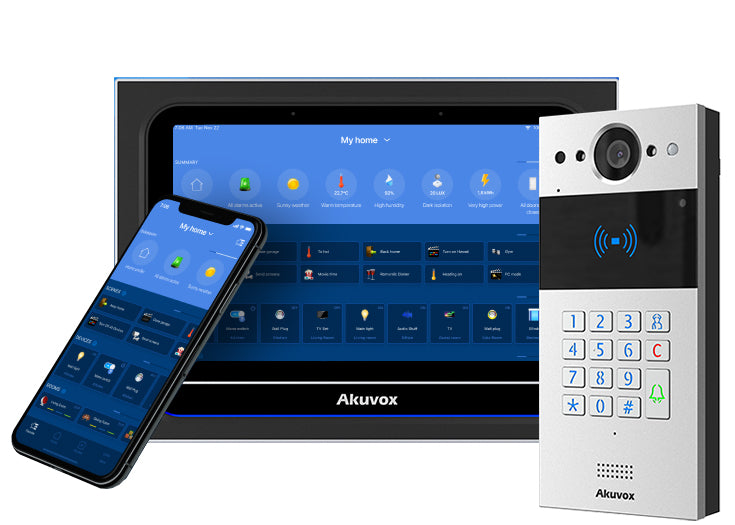

AKUVOX IP SIP Intercom Kit 1

Unbelivable Plug and Play fast Intercom for Houses, Units, Appartments and Small Offices.

The kit includes a premium Akuvox X933W multifunctional wall monitor with an Android 9.0 operating system, provides ultimate audio and video communication with door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display.

You can easy install and use Home Automation Apps like Fibaro/Yubii, Comfort Click and others. Don't forget Spotify as well. You will need only one screen for all yours favorite Android Apps.

See VIDEO

AKUVOX Smart Home Integration Partners: Fibaro, Savant, RTI, Crestron, iRidium, Zipato, Tuya, Control4, LifeSmart.

Product Details

• Excellent performance with Android 9.0 system;
  7-inch capacitive touch screen with energy saving mode;
  Ultimate visual experience with 1280 x 800 resolution;
  Reception of a HD picture from the door communicator;
  Two-way audio communication with other units in the network;
  Complies with SIP standard for easy integration in every SIP capable PBXes;
  Powered by PoE or external source


• SIP v1 (RFC2543), SIP v2 (RFC3261)
  Narrowband audio codec: G.711a, G.711μ, G.729
  Broadband audio codec: G.722
  DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
  Echo Cancellation
  Voice Activation Detection
  Comfort Noise Generator
  Automatic Gain Control
  Video Streaming formats: H.263 & H.264

POE Outdoor Station

Perfect Intercom Outdoor station for daily life

The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox's Video Doorphone R20 K enables you to easily monitor an entrance door or gate and gives you the peace of mind knowing that your facility is more secure.

• Vandal resistant body with numeric keypad
• Wide angle camera: 1 1 0 º H), 58 º V)
• PoE (IEEE802.3af, Power over Ethernet)
• Two way audio communication over IP networks with Echo Cancel feature;
• Complies with SIP standard for easy integration in every SIP capable PBXes;
• Complies with ONVIF standard for easy integration with any network surveillance system;

Product Support

Video

Technical Specifications

Front panel : Aluminum alloy
Camera: 2 M pixels, automatic lighting
Numeric keypad with extra buttons
Light sensor: Support
Infrareds ensor: Support
Wiegand port: Support
R S485 port: Support
RF card reader: 13.56MHz (with NFC) 125 kHz
Relays out: 2
Inputs: 2
Microphone: 40dB

Speaker: 4 Ω / 3 W
Ethernet port : RJ45, 10/100Mbps adaptive
802.3af Power over Ethernet
12V DC connector (if not using PoE)
Water proof & Dust proof: IP 65
Installation: Flush mounted or Wall mounted
Flush mounted DIM: 226 x1 08 x 5 2 mm
Wall mounted DIM: 1 8 5 x 85 x 2 9 mm
Working Humidity: 10 90
Working Temperature: 3 0 C ~ + 6 5 C
Storage Temperature: 40 C ~ +70 C
