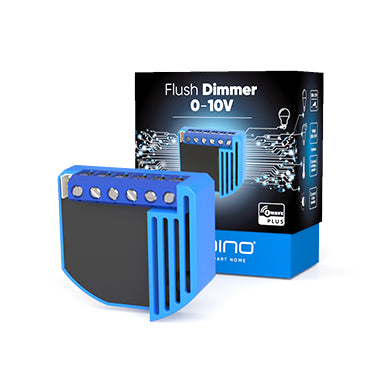

QUBINO Z-Wave Dimmer 0-10V


Price:
$99

Description

Quick Overview

The absolute best selling QUBINO Z-Wave Dimmer 0-10V (by GOAP) is unique. This Z-Wave product was developed to cater for the needs of Smart Home users looking for a Z-Wave solution that controls devices such as lights, fans and similar products with 0-10V signal. The QUBINO Flush Dimmer 0-10V is ideal for remotely dimming LED lights with low voltage ballast.

QUBINO modules are “install-and-forget” products. QUBINO are made to last, so we only select and use top-quality electronic components. These modules are also the most tested Z-Wave microcontrollers on the market. The Slovenian Institute of Quality and Metrology (SIQ), an independent testing body, tests safety parameters including temperature rise, construction, insulation resistance, power consumption and overload in accordance with the EN 60669-2-1 standard.
QUBINO Ltd.  is a European company with 26-years experience in the automation field. With their expertise and passion for innovation in automation they have developed a unique, ready to sell, certified and reliable portfolio of 14 Z-Wave wireless Smart Home products under difirent  brands and OEM around the world.

Product Details

All QUBINO modules are manufactured in Italy.

  • The QUBINO Z-Wave Dimmer 0-10V occupies a smaller volume than comparable modules of any other brand and will fit easily in any flush mounting box
  • Standard 0-10V output
  • Multi-function input in connection with: push button / switch / potentiometer / input 0-10V (any sensor with 0-10V output)
  • Perfect for dimming lights with balast 0-10V
  • Controlling fan speed (for motors or frequency inverters with 0-10V speed control input)
  • Controlling heating / cooling valves (with 0-10V input)
  • Unlimited controlling capability through gateway
  • Z-Wave Plus compliant
  • 23 additional parameters for expert users

Product Support

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using your Vera’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device. A guide to configuring Z-Wave devices with Vera UI7 is available in the Manuals section.

Please note: If you are installing the entire Z-Wave™ system for the first time, please refer to the installation guide of your Z-Wave gateway before installing this device.

The GOAP Flush Dimmer uses a unique MOSFET 'trailing edge' dimmer to enable it to work with a huge range of bulb types:

Halogen and Incandescent (230V)
Dimmable LEDs (230V)
Dimmable CFL and Fluorescent (230V)
Low Voltage Halogen (24V)
Low Voltage LED (24V)

The QUBINO Z-Wave Dimmer can be used in the 230V mains lighting system where it uses a 'Trailing Edge' style dimmer to control the lights. It can also be used in a 24V low-voltage system where it it uses PWM style control of the bulbs.

Please note:These devices require a 3-wire system (including neutral), please check your installation before purchasing. If you have 2-wire system (without neutural) we recommend you use a FIBARO Z-Wave Dimmer 2.

Manuals:



Technical Specifications

RF Protocol
Z-Wave Plus™ , SDK version: 6.51.03
RF Frequency
921.42Mhz ‐ AU/NZ  approved RF for Z‐wave
Application
Indoor use only
Power
12-24 VDC
Operation Range
Up to 50m indoors with no obstacles
Enclosure
Plastic
Comliance
EN 60669-2-1
Operating Temp.  -10C ~ +50C
Max. control voltage raitings
-20/+20VDC
Control signal range
0-11VDC
Max. sinking current
2 mA
Max. sourcing current
10 mA
Dimensions
41.8 mm x 36.8 mm x 15.4 mm
